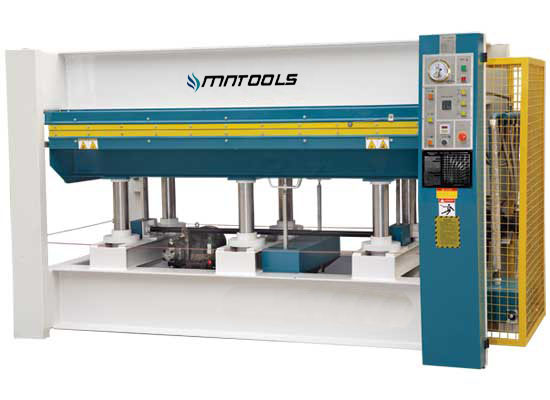

 Hot press |
 |
| |
Model No. |
MTMH38410X100 (1 layer) |
MTMH38410X100 (2 layer) |
MTMH38410X100 (3 layer) |
Table size |
1300 ×3100 ×42mm |
1300 ×3100 ×42mm |
1300 ×3100 ×42mm |
Max. pressure of worktable |
100t（2.5kg/cm2) |
100t（2.5kg/cm2) |
100t（2.5kg/cm2) |
Pressure of hydraulic system |
210kg/cm2 |
210kg/cm2 |
210kg/cm2 |
Max.platen opening |
300mm |
150mm |
100mm |
Oil cylinder |
Ф100 × 6pcs |
Ф100 × 6pcs |
Ф100 × 6pcs |
Hydraulic pump power |
5.5kw |
5.5kw |
5.5kw |
Hot oil pump power |
2.2kw |
2.2kw |
2.2kw |
Heating pipe power |
1 × 27kw |
2 × 18kw |
18kw + 27kw |
Overall dimensions |
3940 ×1620 ×2130mm |
3940 ×1620 ×2170mm |
3940 ×1620 ×2210mm |
Net weight |
6600kg |
7900kg |
9200kg |
CHARACTERISTIC: |
|
Automatic device for controlling close and open Suitable to press veneer , fireboard , decorating-paper etc. Heating type: |
|
1.Electric calefaction with circulating heat-transmission oil |
|
2.Steam gas calefaction with circulating heat-transmission oil |
|
3.With both electric and steam gas calefaction, special for the unsteady steam gas supply areas (three calefaction model can be selected by the client) |
|
key spare parts, pump , are imported from Japan, Taiwan |
|
|
|
|
